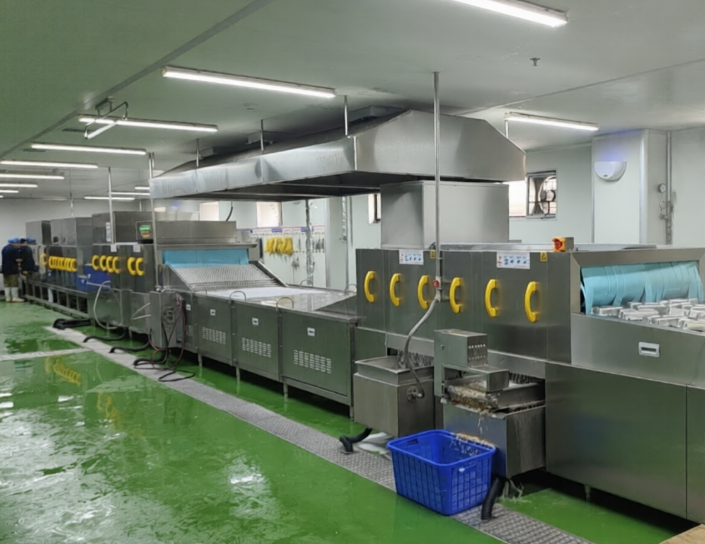

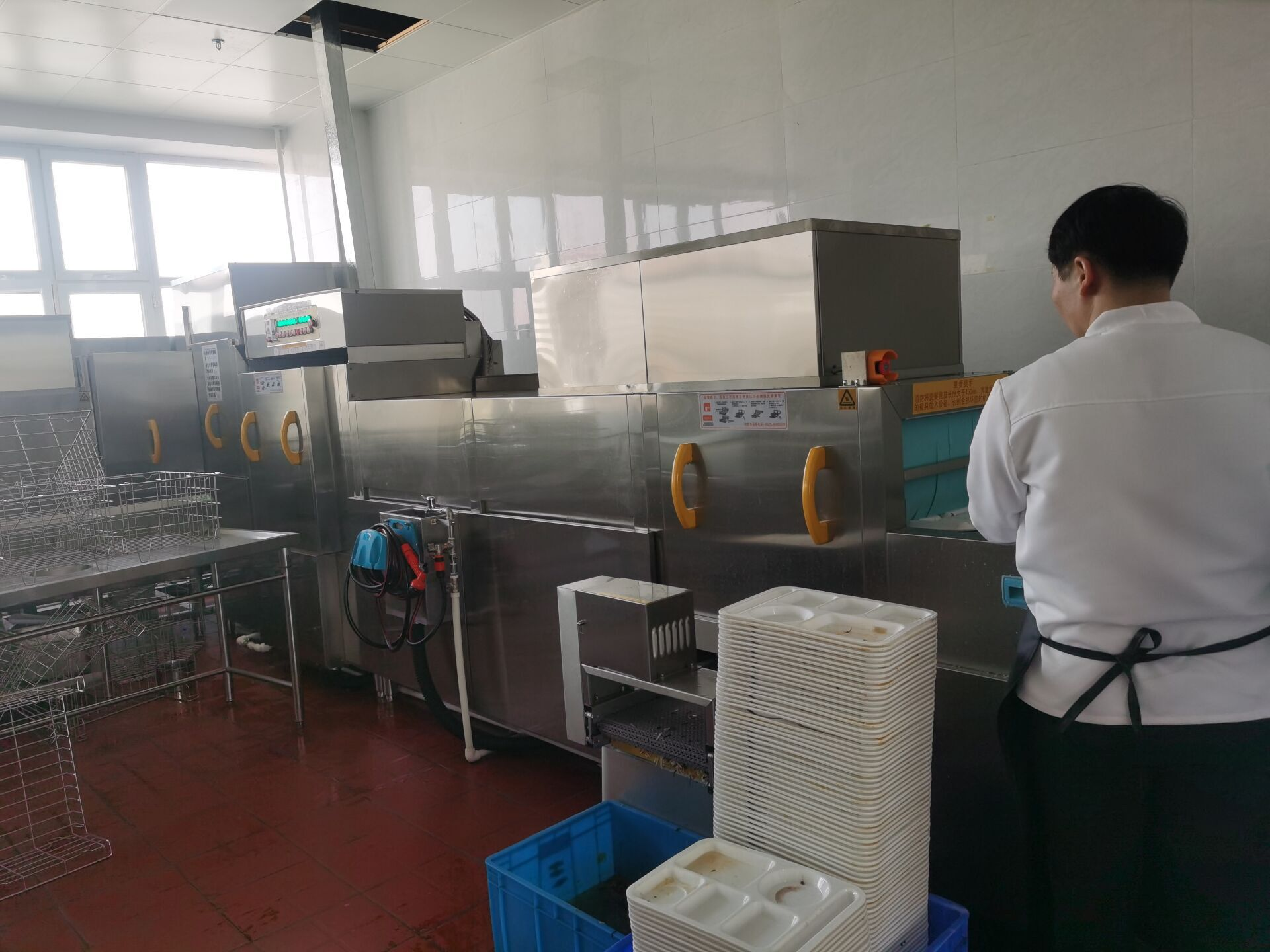

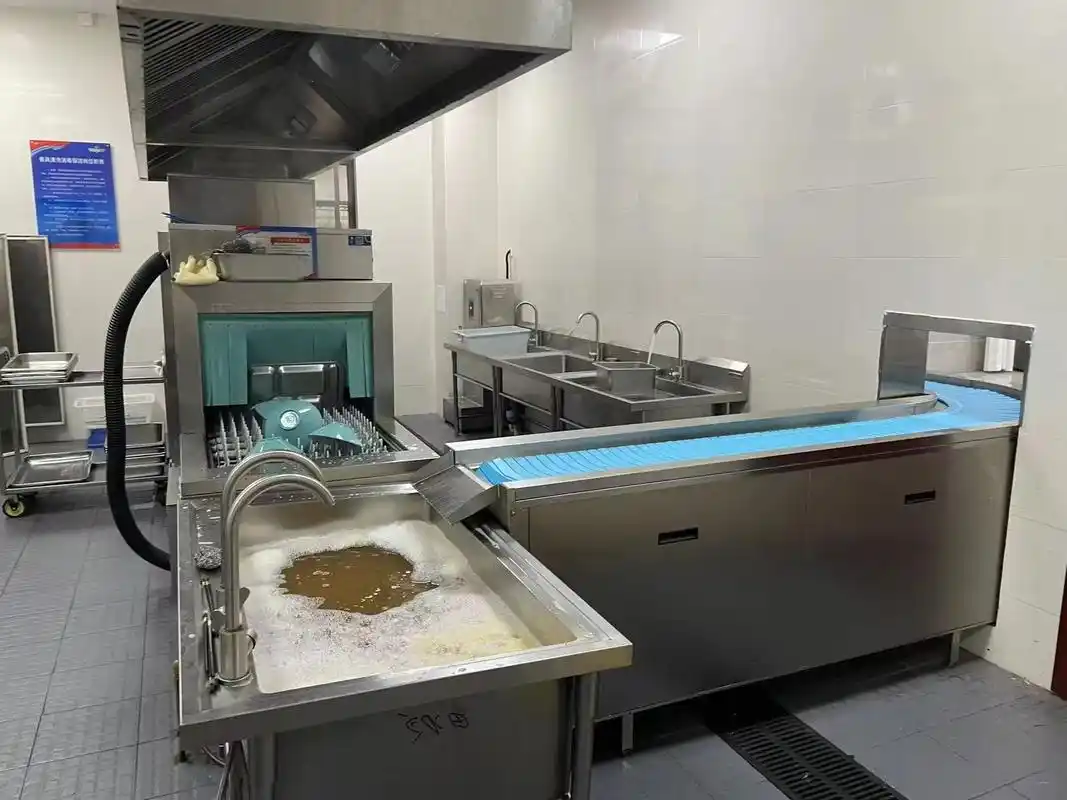

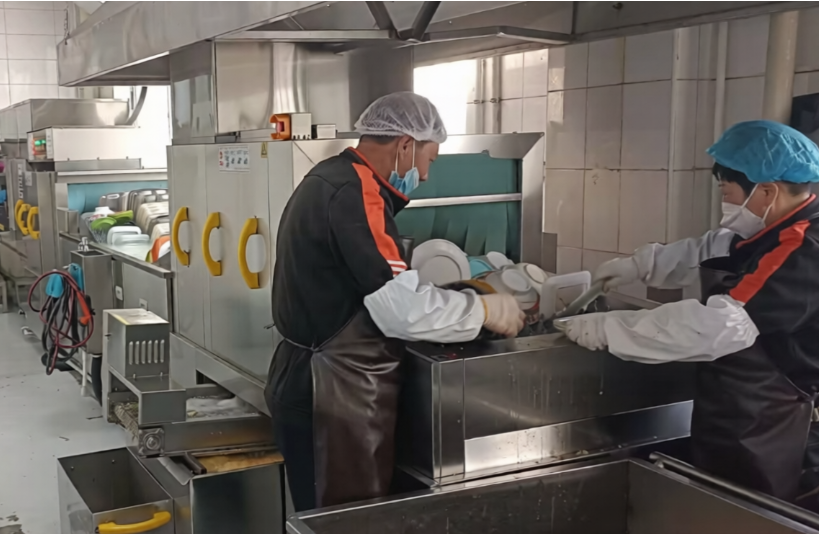

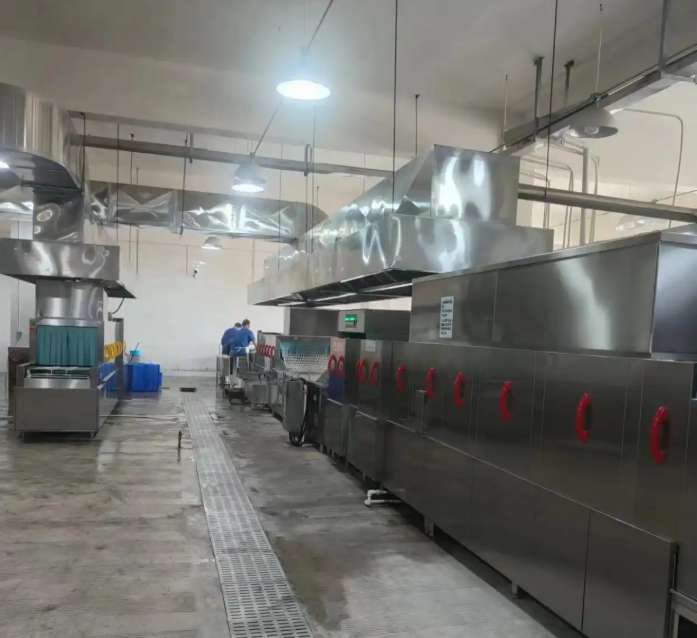

    R590-M Series Conveyor Dishwasher
    R590-M Series Conveyor Dishwasher
    R590-M Series Conveyor Dishwasher
    R590-M Series Conveyor Dishwasher
    R590-M Series Conveyor Dishwasher
    R590-M Series Conveyor Dishwasher

    Scan your phone once

    Summary Features:
    This series of dishwashers features reliable quality, stable performance, low operating cost, simple operation, high safety and easy maintenance. With an innovative design, the machine integrates automatic food residue removal, high-speed washing and drying functions. It has an elegant appearance and runs steadily.The rinsing water temperature reaches above 80℃, ensuring excellent washing results and greatly improving efficiency. Made of high-quality materials, the machine operates smoothly, requires little labor and delivers high output. The cleanliness rate of washed tableware is above 99%.



    Product Details
    Product Introduction

    Our company has developed and designed this fully automatic dishwasher based on scientific and rational mechanical principles, taking into account both Eastern and Western food cultures. It adopts a standard modular structure and is manufactured under standardized production.


    The machine mainly consists of a washing unit and a high-temperature clean water rinsing and disinfection unit (85°C). Tableware cleaned by this dishwasher has been tested by health authorities, and all hygiene indicators meet relevant national standards. It can clean various standard tableware, including cups, plates, bowls, dishes, fast food trays, plastic trays and other food utensils.


    This dishwasher features reliable quality, stable performance, low operating cost, simple operation, high safety and easy maintenance. With a unique design, the series integrates automatic residue removal, fast washing and drying functions. The overall appearance is elegant and attractive, with stable performance.


    The rinsing water temperature reaches over 80°C, ensuring excellent washing results and improving efficiency. The machine runs smoothly, uses high-quality materials, requires less labor and delivers high output. The cleanliness rate of washed tableware can reach more than 99%.


    Through continuous research, development and improvement, the whole machine achieves high efficiency and excellent quality, reduces tableware breakage caused by manual washing, and lowers tableware costs for the catering industry. It runs quickly with low failure rates, freeing users from worries about after-sales maintenance.
    Technical Parameter
    ItemR590-MR590-2MR590-3MR590-4M
    ModelR590-MR590-2MR590-3MR590-4M
    Overall Dimensions2600×950×1500 mm4100×950×1500 mm5000×950×1500 mm5900×950×1500 mm
    Heating MethodElectric / SteamElectric / SteamElectric / SteamElectric / Steam
    Washing Height420 mm420 mm420 mm420 mm
    Total Power30kW / 3kW52.5kW / 4.5kW66kW / 6kW79.5kW / 7.5kW
    Base Power3kW4.5kW6kW7.5kW
    Main Wash Heating Power12kW / 0kW24kW / 0kW36kW / 0kW48kW / 0kW
    Rinse Heating Power24kW / 0kW24kW / 0kW24kW / 0kW24kW / 0kW
    Washing Speed1–3 m/min1–3 m/min1–3 m/min1–3 m/min
    Water Consumption280 L/h280 L/h280 L/h280 L/h


    Product Features
    1.Ultra-low water consumption greatly reduces the consumption of electricity, steam, water and detergent, effectively lowering operating costs.
    2.Continuous conveyor washing ensures high efficiency. Tableware can be directly loaded and unloaded without basket loading and unloading, making operation simple and convenient.
    3.The conveyor washing speed is adjustable to meet the washing requirements of different types of tableware.
    4.Washing temperature can be freely set according to different needs. The machine features a high degree of automation and easy maintenance.
    5.Recessed washing arm nozzles effectively reduce the risk of clogging.
    6.Flexible modular combination allows users to select the appropriate model based on on-site space dimensions.
    7.A limit switch is installed at the outlet to prevent tableware breakage caused by delayed unloading.
